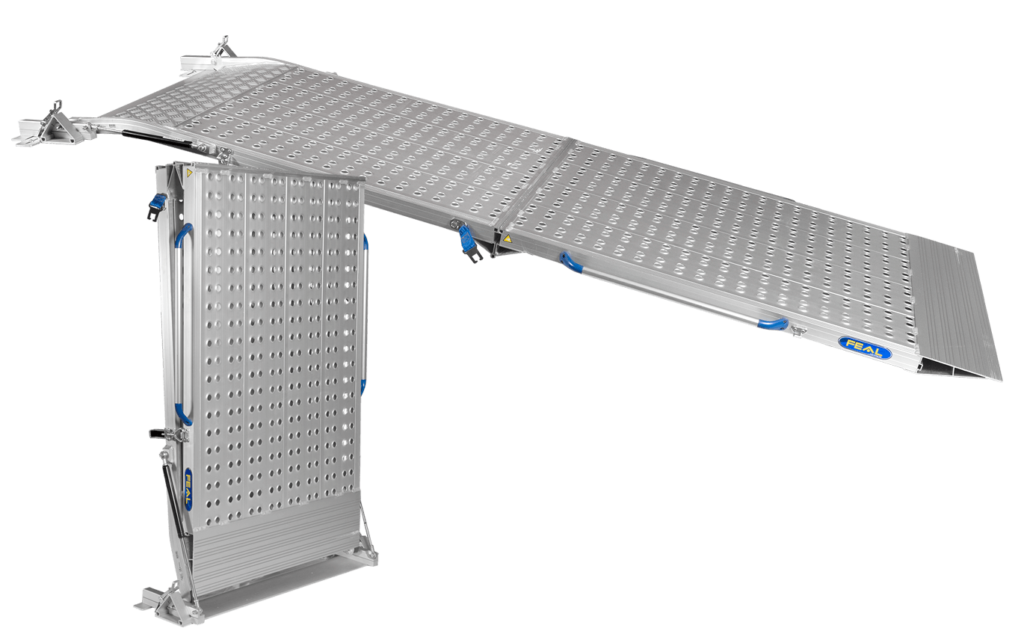

Laadimisrambid

Perforeeritud rambid on valmistatud vastupidavast materjalist, mida on lihtne paigaldada auto tagaossa. Soovi korral valmistame spetsiaalselt kohandatud rampe.

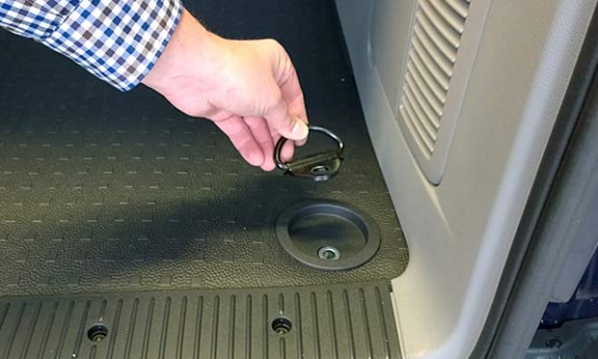

Standartne installatsioon



Pööratava aluse paigaldus


Laadimisrampide tootevalik



LR 048-19
Extended length (cm/in): 190/75
Weight (kg/lb): 18/39,6
Max. load* (kg/lb): 800/1765
Width (cm/in): 48/19
Folded height (cm/in): 107/42

LR 048-21
Extended length (cm/in): 214/85
Weight (kg/lb): 20/44,0
Max. load* (kg/lb): 800/1765
Width (cm/in): 48/19
Folded height (cm/in): 119/47

LR 048-23
Extended length (cm/in): 238/94
Weight (kg/lb): 23/50,7
Max. load* (kg/lb): 650/1435
Width (cm/in): 48/19
Folded height (cm/in): 131/52

LR 048-27
Extended length (cm/in): 282/111
Weight (kg/lb): 59,5/131,2
Max. load* (kg/lb): 650/1435
Width (cm/in): 48/19
Folded height (cm/in): 149/57

LR 069-19
Extended length (cm/in): 190/75
Weight (kg/lb): 25/55,1
Max. load* (kg/lb): 800/1765
Width (cm/in): 69/21
Folded height (cm/in): 107/42

LR 069-21
Extended length (cm/in): 214/84
Weight (kg/lb): 28/61,7
Max. load* (kg/lb): 800/1765
Width (cm/in): 69/21
Folded height (cm/in): 119/47

LR 069-23
Extended length (cm/in): 238/94
Weight (kg/lb): 31/68,3
Max. load* (kg/lb): 650/1435
Width (cm/in): 69/21
Folded height (cm/in): 131/52

LR 069-27
Extended length (cm/in): 282/111
Weight (kg/lb): 35/77,1
Max. load* (kg/lb): 650/1435
Width (cm/in): 69/21
Folded height (cm/in): 149/59

LR 090-19
Extended length (cm/in): 190/75
Weight (kg/lb): 32/70,5
Max. load* (kg/lb): 800/1765
Width (cm/in): 90/35
Folded height (cm/in): 107/42

LR 090-21
Extended length (cm/in): 214/84
Weight (kg/lb): 36/79,3
Max. load* (kg/lb): 800/1765
Width (cm/in): 90/35
Folded height (cm/in): 119/47

LR 090-23
Extended length (cm/in): 238/94
Weight (kg/lb): 40/88,1
Max. load* (kg/lb): 650/1435
Width (cm/in): 90/35
Folded height (cm/in): 131/52

LR 090-27
Extended length (cm/in): 282/111
Weight (kg/lb): 45/99,2
Max. load* (kg/lb): 650/1435
Width (cm/in): 90/35
Folded height (cm/in): 149/59

LR 110-19
Extended length (cm/in): 190/75
Weight (kg/lb): 39/86,0
Max. load* (kg/lb): 800/1765
Width (cm/in): 110/43
Folded height (cm/in): 107/42

LR 110-21
Extended length (cm/in): 214/84
Weight (kg/lb): 44/97,0
Max. load* (kg/lb): 800/1765
Width (cm/in): 110/43
Folded height (cm/in): 119/47

LR 110-23
Extended length (cm/in): 238/94
Weight (kg/lb): 49/108,0
Max. load* (kg/lb): 650/1435
Width (cm/in): 110/43
Folded height (cm/in): 131/52

LR 110-27
Extended length (cm/in): 282/111
Weight (kg/lb): 55/121,2
Max. load* (kg/lb): 650/1433
Width (cm/in): 110/43
Folded height (cm/in): 149/59

* All of these ramps are suitable for loads of up to 1000 kg/2205 lb if support legs are used.
